Exothermic Welding System

BAR TO BAR

BB1 (Straight Joint)

X mm x mm Mold Part Number Weld Powder Size Handle Clamp
20 x 3 BB1-4-203L 45F10 HC04
25 x 3 BB1-4-253L 65F10 HC04
25 x 4 BB1-4-254L 90F10 HC04
25 x 6 BB1-4-256L 150F10 HC04
30 x 2 BB1-4-302L 65F10 HC04
30 x 3 BB1-4-303L 90F10 HC04
30 x 4 BB1-4-304L 115F10 HC04
30 x 5 BB1-4-305L 115F10 HC04
31 x 3 BB1-4-313L 90F10 HC04
31 x 6 BB1-4-316L 150F10 HC04
38 x 3 BB1-4-383L 115F10 HC04
38 x 5 BB1-4-385L 150F10 HC04
38 x 6 BB1-4-386L 200F10 HC04
40 x 3 BB1-4-403L 115F10 HC04
40 x 4 BB1-4-404L 150F10 HC04
40 x 5 BB1-4-405L 150F10 HC04
40 x 6 BB1-4-406L 200F10 HC04
50 x 3 BB1-4-503L 150F10 HC04
50 x 4 BB1-4-504L 200F10 HC04
50 x 5 BB1-4-505L 200F10 HC04
50 x 6 BB1-4-506L 200F10 HC04

BB3 (Tee Joint)

X mm x mm Y mm x mm Mold Part Number Weld Powder Size Clamp
20 x 3 20 x 3 BB3-4-203203L 65F10 HC04
25 x 3 25 x 3 BB3-4-253253L 65F10 HC04
25 x 4 25 x 4 BB3-4-254254L 90F10 HC04
25 x 6 25 x 6 BB3-4-256256L 150F10 HC04
30 x 2 30 x 2 BB3-4-302302L 65F10 HC04
30 x 3 30 x 3 BB3-4-303303L 90F10 HC04
30 x 4 30 x 4 BB3-4-304304L 115F10 HC04
30 x 5 30 x 5 BB3-4-305305L 115F10 HC04
31 x 3 31 x 3 BB3-4-313313L 115F10 HC04
31 x 6 31 x 6 BB3-4-316316L 200F10 HC04
38 x 3 38 x 3 BB3-4-383383L 115F10 HC04
38 x 5 38 x 5 BB3-4-385385L 150F10 HC04
38 x 6 38 x 6 BB3-4-386386L 200F10 HC04
40 x 3 40 x 3 BB3-4-403403L 115F10 HC04
40 x 4 40 x 4 BB3-4-404404L 150F10 HC04
40 x 5 40 x 5 BB3-4-405405L 150F10 HC04
40 x 6 40 x 6 BB3-4-406406L 200F10 HC04
50 x 3 50 x 3 BB3-4-503503L 200F10 HC04
50 x 4 50 x 4 BB3-4-504504L 200F10 HC04
50 x 5 50 x 5 BB3-4-505505L 200F10 HC04
50 x 6 50 x 6 BB3-4-506506L 200F10 HC04

BB7 (Straight Joint)

X mm x mm Mold Part Number Weld Powder Size Handle Clamp
20 x 3 BB7-4-203L 45F10 HC04
25 x 3 BB7-4-253L 65F10 HC04
25 x 4 BB7-4-254L 90F10 HC04
25 x 6 BB7-4-256L 150F10 HC04
30 x 2 BB7-4-302L 65F10 HC04
30 x 3 BB7-4-303L 90F10 HC04
30 x 4 BB7-4-304L 115F10 HC04
30 x 5 BB7-4-305L 115F10 HC04
31 x 3 BB7-4-313L 90F10 HC04
31 x 6 BB7-4-316L 150F10 HC04
38 x 3 BB7-4-383L 115F10 HC04
38 x 5 BB7-4-385L 150F10 HC04
38 x 6 BB7-4-386L 200F10 HC04
40 x 3 BB7-4-403L 115F10 HC04
40 x 4 BB7-4-404L 150F10 HC04
40 x 5 BB7-4-405L 150F10 HC04
40 x 6 BB7-4-406L 200F10 HC04
50 x 3 BB7-4-503L 150F10 HC05
50 x 4 BB7-4-504L 200F10 HC05
50 x 5 BB7-4-505L 200F10 HC05
50 x 6 BB7-4-506L 200F10 HC05

BB14 (Tee Joint)

X mm x mm Y mm x mm Mold Part Number Weld Powder Size Handle Clamp
20 x 3 20 x 3 BB14 -4-203203L 45F10 HC04
25 x 3 25 x 3 BB14 -4-253253L 65F10 HC04
25 x 4 25 x 4 BB14 -4-254254L 90F10 HC04
25 x 6 25 x 6 BB14 -4-256256L 150F10 HC04
30 x 2 30 x 2 BB14 -4-302302L 65F10 HC04
30 x 3 30 x 3 BB14 -4-303303L 90F10 HC04
30 x 4 30 x 4 BB14 -4-304304L 115F10 HC04
30 x 5 30 x 5 BB14 -4-305305L 115F10 HC04
31 x 3 31 x 3 BB14 -4-313313L 90F10 HC04
31 x 6 31 x 6 BB14 -4-316316L 150F10 HC04
38 x 3 38 x 3 BB14 -4-383383L 115F10 HC04
38 x 5 38 x 5 BB14 -4-385385L 150F10 HC04
38 x 6 38 x 6 BB14 -4-386386L 200F10 HC04
40 x 3 40 x 3 BB14 -4-403403L 115F10 HC04
40 x 4 40 x 4 BB14 -4-404404L 150F10 HC04
40 x 5 40 x 5 BB14 -4-405405L 150F10 HC04
40 x 6 40 x 6 BB14 -4-406406L 200F10 HC04
50 x 3 50 x 3 BB14 -4-503503L 150F10 HC05
50 x 4 50 x 4 BB14 -4-504504L 200F10 HC05
50 x 5 50 x 5 BB14 -4-505505L 200F10 HC05
50 x 6 50 x 6 BB14 -4-506506L 200F10 HC05

BB41 (Cross Joint)

X mm x mm Y mm x mm Mold Part Number Weld Powder Size Handle Clamp
20 x 3 20 x 3 BB41 -4-203203L 65F10 HC04
25 x 3 25 x 3 BB41 -4-253253L 65F10 HC04
25 x 4 25 x 4 BB41 -4-254254L 90F10 HC04
25 x 6 25 x 6 BB41 -4-256256L 115F10 HC04
30 x 2 30 x 2 BB41 -4-302302L 65F10 HC04
30 x 3 30 x 3 BB41 -4-303303L 115F10 HC04
30 x 4 30 x 4 BB41 -4-304304L 115F10 HC04
30 x 5 30 x 5 BB41 -4-305305L 115F10 HC04
31 x 3 31 x 3 BB41 -4-313313L 115F10 HC04
31 x 6 31 x 6 BB41 -4-316316L 115F10 HC04
38 x 3 38 x 3 BB41 -4-383383L 150F10 HC04
38 x 5 38 x 5 BB41 -4-385385L 150F10 HC04
38 x 6 38 x 6 BB41 -4-386386L 200F10 HC04
40 x 3 40 x 3 BB41 -4-403403L 200F10 HC04
40 x 4 40 x 4 BB41 -4-404404L 200F10 HC04
40 x 5 40 x 5 BB41 -4-405405L 200F10 HC04
40 x 6 40 x 6 BB41 -4-406406L 200F10 HC04
50 x 3 50 x 3 BB41 -4-503503L 200F10 HC05
50 x 4 50 x 4 BB41 -4-504504L 200F10 HC05
50 x 5 50 x 5 BB41 -4-505505L 200F10 HC05
50 x 6 50 x 6 BB41 -4-506506L 200F10 HC05

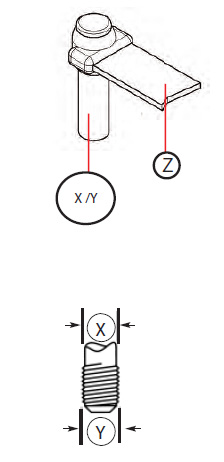

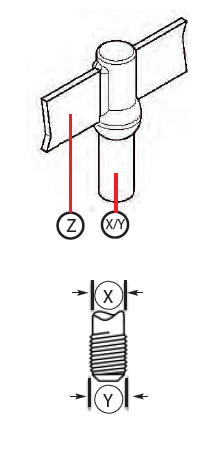

BAR TO EARTH ROD


BR1

X mm Ø Yinches Ø Z mm x mm Mold Part Number Weld Powder Size Handle Clamp
12.7 1/2” 20 x 3 BR1-4-127203L 90F10 HC04
12.7 1/2” 25 x 3 BR1-4-127253L 90F10 HC04
12.7 1/2” 25 x 4 BR1-4-127254L 90F10 HC04
12.7 1/2” 30 x 2 BR1-4-127302L 90F10 HC04
12.7 1/2” 30 x 3 BR1-4-127303L 90F10 HC04
12.7 1/2” 31 x 3 BR1-4-127313L 90F10 HC04
12.7 1/2” 38x 3 BR1-4-127383L 90F10 HC04
12.7 1/2” 40 x 3 BR1-4-127403L 90F10 HC04
12.7 1/2” 50 x 3 BR1-4-127503L 115F10 HC04
12.7 1/2” 50 x 3 BR1-4-127503L 115F10 HC04
14.2 5/8” 20 x 3 BR1-4-142203L 90F10 HC04
14.2 5/8” 25 x 3 BR1-4-142253L 90F10 HC04
14.2 5/8” 25 x 4 BR1-4-142254L 115F10 HC04
14.2 5/8” 25 x 6 BR1-4-142256L 115F10 HC04
14.2 5/8” 30 x 2 BR1-4-142302L 115F10 HC04
14.2 5/8” 30 x 3 BR1-4-142304L 115F10 HC04
14.2 5/8” 30 x 4 BR1-4-142305L 150F10 HC04
14.2 5/8” 30 x 5 BR1-4-142313L 150F10 HC04
14.2 5/8” 31 x 3 BR1-4-142316L 115F10 HC04
14.2 5/8” 31 x 6 BR1-4-142383L 150F10 HC04
14.2 5/8” 38 x 3 BR1-4-142385L 115F10 HC04
14.2 5/8” 38 x 5 BR1-4-142386L 150F10 HC04
14.2 5/8” 38 x 6 BR1-4-142386L 200F10 HC04
14.2 5/8” 40 x 3 BR1-4-142403L 115F10 HC04
14.2 5/8” 40 x 4 BR1-4-142404L 150F10 HC04
14.2 5/8” 40 x 5 BR1-4-142405L 150F10 HC04
14.2 5/8” 40 x 6 BR1-4-142406L 200F10 HC04
14.2 5/8” 50 x 3 BR1-4-142503L 150F10 HC04
14.2 5/8” 50 x 4 BR1-4-142504L 200F10 HC04
14.2 5/8” 50 x 5 BR1-4-142505L 200F10 HC04
14.2 5/8” 50 x 6 BR1-4-142506L 200F10 HC04
17.2 3/4” 20 x 3 BR1-4-172203L 115F10 HC04
17.2 3/4” 25 x 3 BR1-4-172253L 150F10 HC04
17.2 3/4” 25 x 4 BR1-4-172254L 150F10 HC04
17.2 3/4” 25 x 6 BR1-4-172256L 200F10 HC04
17.2 3/4” 30 x 2 BR1-4-172302L 150F10 HC04
17.2 3/4” 30 x 3 BR1-4-172303L 150F10 HC04
17.2 3/4” 30 x 4 BR1-4-172304L 250F10 HC04
17.2 3/4” 30 x 5 BR1-4-172305L 200F10 HC04
17.2 3/4” 31 x 3 BR1-4-172313L 150F10 HC04
17.2 3/4” 31 x 6 BR1-4-172316L 250F10 HC04
17.2 3/4” 38 x 3 BR1-4-172383L 200F10 HC04
17.2 3/4” 38 x 5 BR1-4-172385L 200F10 HC04
17.2 3/4” 38 x 6 BR1-4-172386L 2X150F10 HC05
17.2 3/4” 40 x 3 BR1-4-172403L 200F10 HC04
17.2 3/4” 40 x 4 BR1-4-172404L 200F10 HC04
17.2 3/4” 40 x 5 BR1-4-172405L 200F10 HC04
17.2 3/4” 40 x 6 BR1-4-172406L 2X150F10 HC05
17.2 3/4” 50 x 3 BR1-4-172503L 2X150F10 HC05
17.2 3/4” 50 x 4 BR1-4-172504L 2X150F10 HC05
17.2 3/4” 50 x 5 BR1-4-172505L 2X150F10 HC05
17.2 3/4” 50 x 6 BR1-4-172506L 2X 200F10 HC05

BR2

X mm Ø Y inches Ø Z mm x mm Mold Part Number Weld Powder Size Handle Clamp
12.7 1/2” 20 x 3 BR2-4-127203L 90F10 HC04
12.7 1/2” 25 x 3 BR2-4-127253L 90F10 HC04
12.7 1/2” 25 x 4 BR2-4-127254L 90F10 HC04
12.7 1/2” 30 x 2 BR2-4-127302L 90F10 HC04
12.7 1/2” 30 x 3 BR2-4-127303L 90F10 HC04
12.7 1/2” 31 x 3 BR2-4-127313L 90F10 HC04
12.7 1/2” 38x 3 BR2-4-127383L 90F10 HC04
12.7 1/2” 40 x 3 BR2-4-127403L 90F10 HC04
12.7 1/2” 50 x 3 BR2-4-127503L 115F10 HC04
14.2 5/8” 20 x 3 BR2-4-142203L 90F10 HC04
14.2 5/8” 25 x 3 BR2-4-142253L 90F10 HC04
14.2 5/8” 25 x 4 BR2-4-142254L 115F10 HC04
14.2 5/8” 25 x 6 BR2-4-142256L 150F10 HC04
14.2 5/8” 30 x 2 BR2-4-142302L 90F10 HC04
14.2 5/8” 30 x 3 BR2-4-142304L 115F10 HC04
14.2 5/8” 30 x 4 BR2-4-142305L 150F10 HC04
14.2 5/8” 30 x 5 BR2-4-142313L 150F10 HC04
14.2 5/8” 31 x 3 BR2-4-142316L 115F10 HC04
14.2 5/8” 31 x 6 BR2-4-142383L 150F10 HC04
14.2 5/8” 38 x 3 BR2-4-142385L 150F10 HC04
14.2 5/8” 38 x 5 BR2-4-142386L 150F10 HC04
14.2 5/8” 38 x 6 BR1-4-142386L 200F10 HC04
14.2 5/8” 40 x 3 BR1-4-142403L 150F10 HC04
14.2 5/8” 40 x 4 BR1-4-142404L 150F10 HC04
14.2 5/8” 40 x 5 BR1-4-142405L 150F10 HC04
14.2 5/8” 40 x 6 BR1-4-142406L 200F10 HC04
14.2 5/8” 50 x 3 BR1-4-142503L 200F10 HC04
14.2 5/8” 50 x 4 BR1-4-142504L 200F10 HC04
14.2 5/8” 50 x 5 BR1-4-142505L 200F10 HC04
14.2 5/8” 50 x 6 BR1-4-142506L 250F10 HC04
17.2 3/4” 20 x 3 BR1-4-172203L 150F10 HC04
17.2 3/4” 25 x 3 BR1-4-172253L 150F10 HC04
17.2 3/4” 25 x 4 BR1-4-172254L 200F10 HC04
17.2 3/4” 25 x 6 BR1-4-172256L 200F10 HC04
17.2 3/4” 30 x 2 BR1-4-172302L 150F10 HC04
17.2 3/4” 30 x 3 BR1-4-172303L 150F10 HC04
17.2 3/4” 30 x 4 BR1-4-172304L 250F10 HC04
17.2 3/4” 30 x 5 BR1-4-172305L 200F10 HC04
17.2 3/4” 31 x 3 BR1-4-172313L 200F10 HC04
17.2 3/4” 31 x 6 BR1-4-172316L 250F10 HC04
17.2 3/4” 38 x 3 BR1-4-172383L 200F10 HC04
17.2 3/4” 38 x 5 BR1-4-172385L 200F10 HC04
17.2 3/4” 38 x 6 BR1-4-172386L 2X250F10 HC04
17.2 3/4” 40 x 3 BR1-4-172403L 200F10 HC04
17.2 3/4” 40 x 4 BR1-4-172404L 200F10 HC04
17.2 3/4” 40 x 5 BR1-4-172405L 200F10 HC04
17.2 3/4” 40 x 6 BR1-4-172406L 150F10 HC04
17.2 3/4” 50 x 3 BR1-4-172503L 2X150F10 HC05
17.2 3/4” 50 x 4 BR1-4-172504L 2X150F10 HC05
17.2 3/4” 50 x 5 BR1-4-172505L 2X150F10 HC05
17.2 3/4” 50 x 6 BR1-4-172506L 2X 150F10 HC05

BAR TO STEEL SURFACE


BS1

X mm x mm Mold Part Number Weld Powder Size Handle Clamp
20 x 3 BS1-4-203L 65F10 HC04
25 x 3 BS1-4-253L 90F10 HC04
25 x 4 BS1-4-254L 90F10 HC04
25 x 6 BS1-4-256L 150F10 HC04
30 x 2 BS1-4-302L 90F10 HC04
30 x 3 BS1-4-303L 90F10 HC04
30 x 4 BS1-4-304L 115F10 HC04
30 x 5 BS1-4-305L 150F10 HC04
31 x 3 BS1-4-313L 90F10 HC04
31 x 6 BS1-4-316L 200F10 HC04
38 x 3 BS1-4-383L 150F10 HC04
38 x 5 BS1-4-385L 200F10 HC04
38 x 6 BS1-4-386L 250F10 HC04
40 x 3 BS1-4-403L 150F10 HC04
40 x 4 BS1-4-404L 200F10 HC04
40 x 5 BS1-4-405L 200F10 HC04
40 x 6 BS1-4-406L 250F10 HC04
50 x 3 BS1-4-503L 200F10 HC04
50 x 4 BS1-4-504L 250F10 HC04
50 x 5 BS1-4-505L 250F10 HC04
50 x 6 BS1-4-506L 2 X 150F10 HC05

BS2

X mm x mm Mold Part Number Weld Powder Size Handle Clamp
20 x 3 BS2-4-203L 90F10 HC04
25 x 3 BS2-4-253L 90F10 HC04
25 x 4 BS2-4-254L 90F10 HC04
25 x 6 BS2-4-256L 150F10 HC04
30 x 2 BS2-4-302L 115F10 HC04
30 x 3 BS2-4-303L 115F10 HC04
30 x 4 BS2-4-304L 150F10 HC04
30 x 5 BS2-4-305L 200F10 HC04
31 x 3 BS2-4-313L 115F10 HC04
31 x 6 BS2-4-316L 200F10 HC04
38 x 3 BS2-4-383L 150F10 HC04
38 x 5 BS2-4-385L 200F10 HC04
38 x 6 BS2-4-386L 200F10 HC04
40 x 3 BS2-4-403L 115F10 HC04
40 x 4 BS2-4-404L 200F10 HC04
40 x 5 BS2-4-405L 200F10 HC04
40 x 6 BS2-4-406L 250F10 HC04
50 x 3 BS2-4-503L 200F10 HC04
50 x 4 BS2-4-504L 2 X 150F10 HC05
50 x 5 BS2-4-505L 2 X 150F10 HC05
50 x 6 BS2-4-506L 2 X 150F10 HC05

BS3

X mm x mm Mold Part Number Weld Powder Size Handle Clamp
20 x 3 BS3-4-203L 65F10 HC04
20 x 3 BS3-4-203L 90F10 HC04
25 x 3 BS3-4-253L 115F10 HC04
25 x 4 BS3-4-254L 115F10 HC04
25 x 6 BS3-4-256L 150F10 HC04
30 x 2 BS3-4-302L 115F10 HC04
30 x 3 BS3-4-303L 115F10 HC04
30 x 4 BS3-4-304L 150F10 HC04
30 x 5 BS3-4-305L 200F10 HC04
31 x 3 BS3-4-313L 150F10 HC04
31 x 6 BS3-4-316L 200F10 HC04
38 x 3 BS3-4-383L 250F10 HC04
38 x 5 BS3-4-385L 200F10 HC04
38 x 6 BS3-4-386L 250F10 HC04
40 x 3 BS3-4-403L 150F10 HC04
40 x 4 BS3-4-404L 200F10 HC04
40 x 5 BS3-4-405L 250F10 HC04
40 x 6 BS3-4-406L 250F10 HC04
50 x 3 BS3-4-503L 250F10 HC04
50 x 4 BS3-4-504L 250F10 HC04
50 x 5 BS3-4-505L 250F10 HC04
50 x 6 BS3-4-506L 250F10 HC04

CABLE TO BAR


CB1

X mm2 Ymm x mm Mold Part Number Weld Powder Size Handle Clamp
16 20 x 3 CB1 -4-16203L 45F10 HC04
16 25 x 3 CB1 -4-16253L 45F10 HC04
25 20 x 3 CB1 -4-25203L 32F10 HC04
25 25 x 3 CB1 -4-25253L 45F10 HC04
35 20 x 3 CB1 -4-35203L 45F10 HC04
35 25 x 3 CB1 -4-35253L 45F10 HC04
50 20 x 3 CB1 -4-50203L 45F10 HC04
50 25 x 3 CB1 -4-50253L 65F10 HC04
70 25 x 3 CB1 -4-70253L 65F10 HC04
70 25 x 4 CB1 -4-70254L 65F10 HC04
70 25 x 6 CB1 -4-70256L 65F10 HC04
95 25 x 4 CB1 -4-95254L 90F10 HC04
95 25 x 6 CB1 -4-95256L 90F10 HC04
120 25 x 6 CB1 -4-120256L 90F10 HC04
120 30 x 5 CB1 -4-120305L 115F10 HC04
150 25 x 6 CB1 -4-150256L 115F10 HC04
150 30 x 5 CB1 -4-150305L 115F10 HC04
150 40 x 5 CB1 -4-150405L 150F10 HC04
185 31 x 6 CB1 -4-185316L 150F10 HC04
185 40 x 5 CB1 -4-185405L 150F10 HC04
185 50 x 5 CB1 -4-185505L 200F10 HC05
240 50 x 5 CB1 -4-240505L 200F10 HC05
240 50 x 6 CB1 -4-240506L 2 X 150F10 HC05
300 50 x 6 CB1 -4-300506L 2 X 150F10 HC05

CB4

X mm2 Y mm x mm Mold Part Number Weld Powder Size Handle Clamp
16 20 x 3 CB4-4-16203L 45PF10 HC04
16 25 x 3 CB4-4-16253L 45F10 HC04
25 20 x 3 CB4-4-25203L 32F10 HC04
25 25 x 3 CB4-4-25253L 32F10 HC04
35 20 x 3 CB4-4-35203L 45F10 HC04
35 25 x 3 CB4-4-35253L 45F10 HC04
50 20 x 3 CB4-4-50203L 45F10 HC04
50 25 x 3 CB4-4-50253L 45F10 HC04
70 25 x 3 CB4-4-70253L 65F10 HC04
70 25 x 4 CB4-4-70254L 65F10 HC04
70 25 x 6 CB4-4-70256L 90F10 HC04
95 25 x 4 CB4-4-95254L 90F10 HC04
95 25 x 6 CB4-4-95256L 115F10 HC04
120 25 x 6 CB4-4-120256L 115F10 HC04
120 30 x 5 CB4-4-120305L 115F10 HC04
150 25 x 6 CB4-4-150256L 115F10 HC04
150 30 x 5 CB4-4-150305L 115F10 HC04
150 40 x 5 CB4-4-150405L 115F10 HC04
185 31 x 6 CB4-4-185316L 150F10 HC04
185 40 x 5 CB4-4-185405L 150F10 HC04
185 50 x 5 CB4-4-185505L 150F10 HC04
240 50 x 5 CB4-4-240505L 200F10 HC04
240 50 x 6 CB4-4-240506L 250F10 HC04
300 50 x 6 CB4-4-300506L 2 X 150F10 HC05

CB5 (- Joint)

X mm2 Y mm x mm Mold Part Number Weld Powder Size Handle Clamp
16 20 x 3 CB5-4-16203L 45F10 HC04
16 25 x 3 CB5-4-16253L 65F10 HC04
25 20 x 3 CB5-4-25203L 45F10 HC04
25 25 x 3 CB5-4-25253L 65F10 HC04
35 20 x 3 CB5-4-35203L 45F10 HC04
35 25 x 3 CB5-4-35253L 65F10 HC04
50 20 x 3 CB5-4-50203L 65F10 HC04
50 25 x 3 CB5-4-50253L 65F10 HC04
70 25 x 3 CB5-4-70253L 90F10 HC04
70 25 x 4 CB5-4-70254L 115F10 HC04
70 25 x 6 CB5-4-70256L 115F10 HC04
95 25 x 4 CB5-4-95254L 150F10 HC04
95 25 x 6 CB5-4-95256L 150F10 HC04
120 25 x 6 CB5-4-120256L 150F10 HC04
120 30 x 5 CB5-4-120305L 200F10 HC04
150 25 x 6 CB5-4-150256L 200F10 HC04
150 30 x 5 CB5-4-150305L 200F10 HC04
150 40 x 5 CB5-4-150405L 250F10 HC04
185 31 x 6 CB5-4-185316L 250F10 HC04
185 40 x 5 CB5-4-185405L 250F10 HC04
185 50 x 5 CB5-4-185505L 2 X 150F10 HC05
240 50 x 5 CB5-4-240505L 2 X 150F10 HC05
240 50 x 6 CB5-4-240506L 2 X 200F10 HC05
300 50 x 6 CB5-4-300506L 2 X 250F10 HC05

CABLE TO CABLE


CC1

X mm2 Mold Part Number Weld Powder Size Handle Clamp
16 CC1-4-16L 32F10 HC04
25 CC1-4-25L 32F10 HC04
35 CC1-4-35L 32F10 HC04
50 CC1-4-50L 4510 HC04
70 CC1-4-70L 65F10 HC04
95 CC1-4-95L 90F10 HC04
120 CC1-4-95L 115F10 HC04
150 CC1-4-150L 115F10 HC04
185 CC1-4-185L 150F10 HC04
240 CC1-4-240L 200F10 HC04
300 CC1-4-300L 250F10 HC04
400 CC1-4-400L 2x150F10 HC05

CC2 (Tee Joint)

X mm2 Y mm2 Mold Part Number Weld Powder Size Handle Clamp
16 16 CC2-4-1616L 45F10 HC04
25 25 CC2-4-2525L 45F10 HC04
35 35 CC2-4-3535L 45F10 HC04
35 25 CC2-4-3525L 45F10 HC04
50 50 CC2-4-5050L 90F10 HC04
50 35 CC2-4-5035L 65F10 HC04
50 25 CC2-4-75025L 65F10 HC04
70 70 CC2-4-7070L 90F10 HC04
70 50 CC2-4-7025L 90F10 HC04
70 35 CC2-4-7035L 65F10 HC04
70 25 CC2-4-7025L 65F10 HC04
95 95 CC2-4-9595L 115F10 HC04
95 70 CC2-4-9570L 90F10 HC04
95 50 CC2-4-9550L 90F10 HC04
95 35 CC2-4-9535L 90F10 HC04
120 120 CC2-4-120120L 150F10 HC04
120 95 CC2-4-12095L 150F10 HC04
120 70 CC2-4-12070L 90F10 HC04
120 50 CC2-4-12050L 90F10 HC04
150 150 CC2-4-150150L 200F10 HC04
150 120 CC2-4-150120L 150F10 HC04
150 95 CC2-4-15095L 150F10 HC04
150 70 CC2-4-15070L 90F10 HC04
185 185 CC2-4-185185L 200F10 HC04
185 150 CC2-4-185150L 200F10 HC04
185 120 CC2-4-185120L 200F10 HC04
185 95 CC2-4-18595L 150F10 HC04
240 240 CC2-4-240240L 2 x 150F10 HC04
240 185 CC2-4-240185L 200F10 HC04
240 150 CC2-4-240150L 200F10 HC04
240 120 CC2-4-240120L 200F10 HC04
300 300 CC2-5-300300L 2 x 200F10 HC04
300 300 CC2-5-300300L 2 x 200F10 HC04
300 300 CC2-5-300240L 2 x 200F10 HC04
300 185 CC2-4-300185L 250F10 HC04

CC4 (Cross Joint)

X mm2 Y mm2 Mold Part Number Weld Powder Size Handle Clamp
16 16 CC4-4-1616L 65F10 HC04
25 25 CC4-4-2525L 45F10 HC04
35 35 CC4-4-3535L 65F10 HC04
35 25 CC4-4-3525L 65F10 HC04
50 50 CC4-4-5050L 90F10 HC04
50 35 CC4-4-5035L 90F10 HC04
50 25 CC4-4-5025L 90F10 HC04
70 70 CC4-4-7070L 115F10 HC04
70 50 CC4-4-7050L 115F10 HC04
70 35 CC4-4-7035L 115F10 HC04
70 25 CC4-4-7025L 115F10 HC04
95 95 CC4-4-9595L 150F10 HC04
95 70 CC4-4-9570L 150F10 HC04
95 50 CC4-4-9550L 115F10 HC04
95 35 CC4-4-9535L 115F10 HC04
120 120 CC4-4-120120L 200F10 HC04
120 95 CC4-4-12095L 200F10 HC04
120 70 CC4-4-12070L 150F10 HC04
120 50 CC2-4-12050L 150F10 HC04
150 150 CC4-4-150150L 250F10 HC04
150 120 CC4-4-150120L 250F10 HC04
150 95 CC4-4-15095L 200F10 HC04
150 70 CC4-4-15070L 150F10 HC04
185 185 CC4-4-185185L 2 x 150F10 HC04
185 150 CC4-4-185150L 250F10 HC04
185 120 CC4-4-185120L 250F10 HC04
185 95 CC4-4-18595L 200F10 HC04
240 240 CC4-5-240240L 2 x 250F10 HC05
240 185 CC4-5-240185L 2 x 200F10 HC05
240 150 CC4-5-240150L 2 x 200F10 HC05
240 120 CC2-4-240120L 2 x 150F10 HC05

CC6

X mm2 Y mm2 Mold Part Number Weld Powder Size Handle Clamp
16 16 CC6-4-1616L 65F10 HC04
25 25 CC6-4-2525L 45F10 HC04
35 35 CC6-4-3535L 65F10 HC04
35 25 CC6-4-3525L 65F10 HC04
50 50 CC6-4-5050L 90F10 HC04
50 35 CC6-4-5035L 65F10 HC04
50 25 CC6-4-5025L 65F10 HC04
70 70 CC6-4-7070L 115F10 HC04
70 50 CC6-4-7050L 115F10 HC04
70 35 CC6-4-7035L 90F10 HC04
70 25 CC6-4-7025L 90F10 HC04
95 95 CC6-4-9595L 150F10 HC04
95 70 CC6-4-9570L 115F10 HC04
95 50 CC6-4-9550L 115F10 HC04
95 35 CC6-4-9535L 115F10 HC04
120 120 CC6-4-120120L 200F10 HC04
120 95 CC6-4-12095L 200F10 HC04
120 70 CC6-4-12070L 150F10 HC04
120 50 CC2-4-12050L 115F10 HC04

CC7 (Parallel Through)

X mm2 Y mm2 Mold Part Number Weld Powder Size Handle Clamp
16 16 CC7-4-1616L 65F10 HC04
25 25 CC7-4-2525L 45F10 HC04
35 35 CC7-4-3535L 65F10 HC04
35 25 CC7-4-3525L 65F10 HC04
50 50 CC7-4-5050L 90F10 HC04
50 35 CC7-4-5035L 90F10 HC04
50 25 CC7-4-5025L 65F10 HC04
70 70 CC7-4-7070L 115F10 HC04
70 50 CC7-4-7050L 115F10 HC04
70 35 CC7-4-7035L 90F10 HC04
70 25 CC7-4-7025L 90F10 HC04
95 95 CC7-4-9595L 150F10 HC04
95 70 CC7-4-9570L 115F10 HC04
95 50 CC7-4-9550L 115F10 HC04
95 35 CC7-4-9535L 115F10 HC04
120 120 CC7-4-120120L 200F10 HC04
120 95 CC7-4-12095L 200F10 HC04
120 70 CC7-4-12070L 150F10 HC04
120 50 CC7-4-12050L 150F10 HC04
150 150 CC7-4-150150L 2 X 150F10 HC04
150 120 CC7-4-150120L 250F10 HC04
150 95 CC7-4-15095L 200F10 HC04
150 70 CC7-4-15070L 150F10 HC04
185 185 CC7-5-185185L 2 x 150F10 HC05
185 150 CC7-5-185150L 2 x 250F10 HC05
185 120 CC7-4-185120L 250F10 HC04
185 95 CC7-4-18595L 200F10 HC04
240 240 CC7-5-240240L 2 x 200F10 HC05
240 185 CC7-5-240185L 2 x 200F10 HC05
240 150 CC7-5-240150L 2 x 150F10 HC05
240 120 CC7-4-240120L 250F10 HC04
300 300 CC7-5-300300L 2 X 250F10 HC05
300 240 CC7-5-300240L 2 X 250F10 HC05
300 185 CC7-5-300185L 2 X 200F10 HC05
300 150 CC7-5-300150L 2 X 150F10 HC05

CC11 (Cross Joint Overlapped)

X mm2 Y mm2 Mold Part Number Weld Powder Size Handle Clamp
50 50 CC11 -7-5050L 150F10 HC07
70 70 CC11 -7-7070L 200F10 HC07
95 95 CC11 -7-9595L 250F10 HC07
120 120 CC11 -7-120120L 2 x 150F10 HC07
150 150 CC11 -8-150150L 2 x 200F10 HC08
185 185 CC11 -8-185185L 2 x 250F10 HC08
240 240 CC11 -8-240240L 3 x 250F10 HC08

CC14

X mm2 Y mm2 Mold Part Number Weld Powder Size Handle Clamp
16 16 CC14 -4-1616L 65F10 HC04
25 25 CC14 -4-2525L 45F10 HC04
35 35 CC14 -4-3535L 65F10 HC04
35 25 CC14 -4-3525L 65F10 HC04
50 50 CC14 -4-5050L 90F10 HC04
50 35 CC14 -4-5035L 90F10 HC04
50 25 CC14 -4-5025L 90F10 HC04
70 70 CC14 -4-7070L 115F10 HC04
70 50 CC14 -4-7050L 115F10 HC04
70 35 CC14 -4-7035L 90F10 HC04
70 25 CC14 -4-7025L 90F10 HC04
95 95 CC14 -4-9595L 150F10 HC04
95 70 CC14 -4-9570L 150F10 HC04
95 50 CC14 -4-9550L 150F10 HC04
95 35 CC14 -4-9535L 115F10 HC04
120 120 CC14 -4-120120L 200F10 HC04
120 95 CC14 -4-12095L 200F10 HC04
120 70 CC14 -4-12070L 200F10 HC04
120 50 CC14 -4-12050L 150F10 HC04

CABLE TO ROD


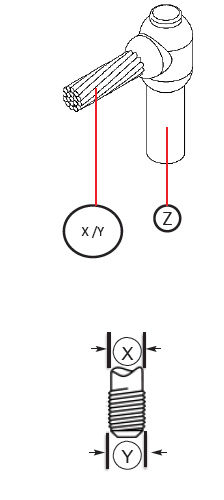

CR1 (Angle Joint)

X mm Ø Y inches Ø Z mm2 Mold Part Number Weld Powder Size Handle Clamp
12.7 1/2” 16 CR1-4-12716L 65F10 HC04
12.7 1/2” 25 CR1-4-12725L 65F10 HC04
12.7 1/2” 35 CR1-4-12735L 65F10 HC04
12.7 1/2” 50 CR1-4-12750L 65F10 HC04
12.7 1/2” 70 CR1-4-12770L 90F10 HC04
12.7 1/2” 95 CR1-4-12795L 90F10 HC04
12.7 1/2” 120 CR1-4-127120L 90F10 HC04
14.2 5/8” 16 CR1-4-14216L 65F10 HC04
14.2 5/8” 25 CR1-4-14225L 65F10 HC04
14.2 5/8” 35 CR1-4-14235L 65F10 HC04
14.2 5/8” 50 CR1-4-12450L 90F10 HC04
14.2 5/8” 70 CR1-4-14270L 90F10 HC04
14.2 5/8” 95 CR1-4-14295L 90F10 HC04
14.2 5/8” 120 CR1-4-142120L 90F10 HC04
14.2 5/8” 150 CR1-4-142150L 115F10 HC04
14.2 5/8” 185 CR1-4-142185L 115F10 HC04
14.2 5/8” 240 CR1-4-142240L 150F10 HC04
17.2 3/4” 16* CR1-4-17216L 65F10 HC04
17.2 3/4” 25 CR1-4-17225L 65F10 HC04
17.2 3/4” 35 CR1-4-17235L 65F10 HC04
17.2 3/4” 50 CR1-4-17250L 90F10 HC04
17.2 3/4” 70 CR1-4-17270L 90F10 HC04
17.2 3/4” 95 CR1-4-17295L 90F10 HC04
17.2 3/4” 120 CR1-4-172120L 90F10 HC04
17.2 3/4” 150 CR1-4-172150L 115F10 HC04
17.2 3/4” 185 CR1-4-172185L 115F10 HC04
17.2 3/4” 240 CR1-4-172240L 150F10 HC04
17.2 3/4” 300 CR1-4-172300L 200F10 HC04

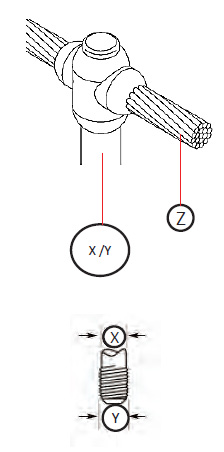

CR2 (Tee Joint)

X mm Ø Y inchesØ Z mm2 Mold Part Number Weld Powder Size Handle Clamp
12.7 1/2” 16 CR2-4-12716L 90F10 HC04
12.7 1/2” 25 CR2-4-12725L 90F10 HC04
12.7 1/2” 35 CR2-4-12735L 90F10 HC04
12.7 1/2” 50 CR2-4-12750L 90F10 HC04
12.7 1/2” 70 CR2-4-12770L 90F10 HC04
12.7 1/2” 95 CR2-4-12795L 115F10 HC04
12.7 1/2” 120 CR2-4-12720L 150F10 HC04
14.2 5/8” 16 CR2-4-14216L 90F10 HC04
14.2 5/8” 25 CR2-4-14225L 90F10 HC04
14.2 5/8” 35 CR2-4-14235L 90F10 HC04
14.2 5/8” 50 CR2-4-14250L 90F10 HC04
14.2 5/8” 70 CR2-4-14270L 115F10 HC04
14.2 5/8” 95 CR2-4-14295L 115F10 HC04
14.2 5/8” 120 CR2-4-142120L 150F10 HC04
14.2 5/8” 150 CR2-4-142150L 200F10 HC04
14.2 5/8” 185 CR2-4-142185L 200F10 HC04
14.2 5/8” 240 CR2-4-142240L 250F10 HC04
17.2 3/4” 16 CR2-4-17216L 90F10 HC04
17.2 3/4” 25 CR2-4-17225 90F10 HC04
17.2 3/4” 35 CR2-4-17235 90F10 HC04
17.2 3/4” 50 CR2-4-17250 115F10 HC04
17.2 3/4” 70 CR2-4-17270 115F10 HC04
17.2 3/4” 95 CR2-4-17295 115F10 HC04
17.2 3/4” 120 CR2-4-172120 150F10 HC04
17.2 3/4” 150 CR2-4-172150 200F10 HC04
17.2 3/4” 185 CR2-4-172185 200F10 HC04
17.2 3/4” 240 CR2-4-172240 250F10 HC04
17.2 3/4” 300 CR2-4-172300 2X150F10 HC05

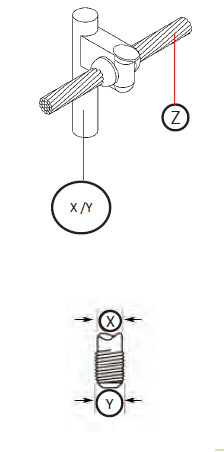

CR3

X mm Ø Y inches Ø Z mm2 Mold Part Number Weld Powder Size Handle Clamp
12.7 1/2” 16 CR3-4-12716L 90F10 HC04
12.7 1/2” 25 CR3-4-12725L 90F10 HC04
12.7 1/2” 35 CR3-4-12735L 90F10 HC04
12.7 1/2” 50 CR3-4-12750L 115F10 HC04
12.7 1/2” 70 CR3-4-12770L 115F10 HC04
12.7 1/2” 95 CR3-4-12795L 115F10 HC04
12.7 1/2” 120 CR3-4-12720L 150F10 HC04
14.2 5/8” 16 CR3-4-14216L 90F10 HC04
14.2 5/8” 25 CR3-4-14225L 90F10 HC04
14.2 5/8” 35 CR3-4-14235L 90F10 HC04
14.2 5/8” 50 CR3-4-14250L 115F10 HC04
14.2 5/8” 70 CR3-4-14270L 115F10 HC04
14.2 5/8” 95 CR3-4-14295L 115F10 HC04
14.2 5/8” 120 CR3-4-142120L 150F10 HC04
14.2 5/8” 150 CR3-4-142150L 150F10 HC04
14.2 5/8” 185 CR3-4-142185L 250F10 HC04
14.2 5/8” 240 CR3-4-142240L 2 X 200F10 HC04
17.2 3/4” 16 CR3-4-17216L 90F10 HC04
17.2 3/4” 25 CR3-4-17225 90F10 HC04
17.2 3/4” 35 CR3-4-17235 90F10 HC04
17.2 3/4” 50 CR3-4-17250 115F10 HC04
17.2 3/4” 70 CR3-4-17270 150F10 HC04
17.2 3/4” 95 CR3-4-17295 150F10 HC04
17.2 3/4” 120 CR3-4-172120 200F10 HC04
17.2 3/4” 150 CR3-4-172150 250F10 HC04
17.2 3/4” 185 CR3-4-172185 2 X 200F10 HC05
17.2 3/4” 240 CR3-4-172240 2 X 250F10 HC05
17.2 3/4” 300 CR3-4-172300 3 X 200F10 HC05
